Our commercial ice cream cone machine is designed for professional production of high-quality wafer cones, sugar cones, and other edible ice cream containers. With 9 different models ranging from 2 to 60 molds, we have the perfect solution for small ice cream shops to large-scale industrial production facilities.
What Can You Make?
This machine is an essential supporting facility for ice cream machines, used to manufacture cone-shaped ice cream or other edible food containers. With flour as the main ingredient, plus appropriate seasonings, water is added to make a batter, which is then fed into the machine in fixed quantities. After heating and expansion, it becomes an edible and aesthetically pleasing container—the ice cream cone.

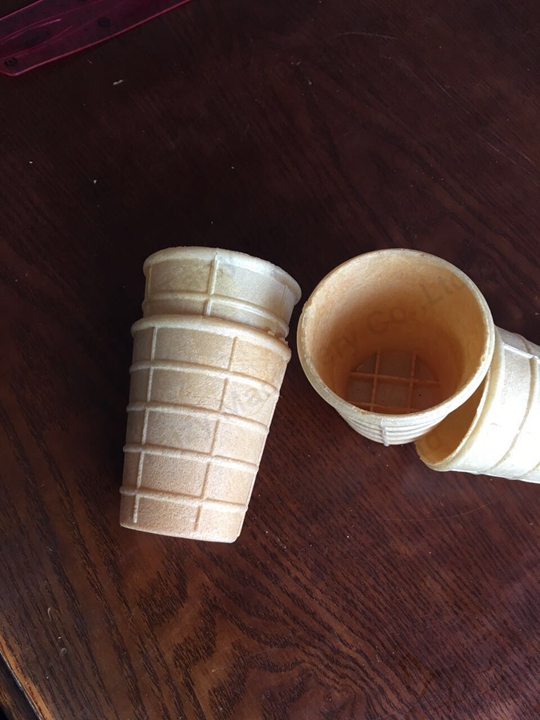

Cone Types Available

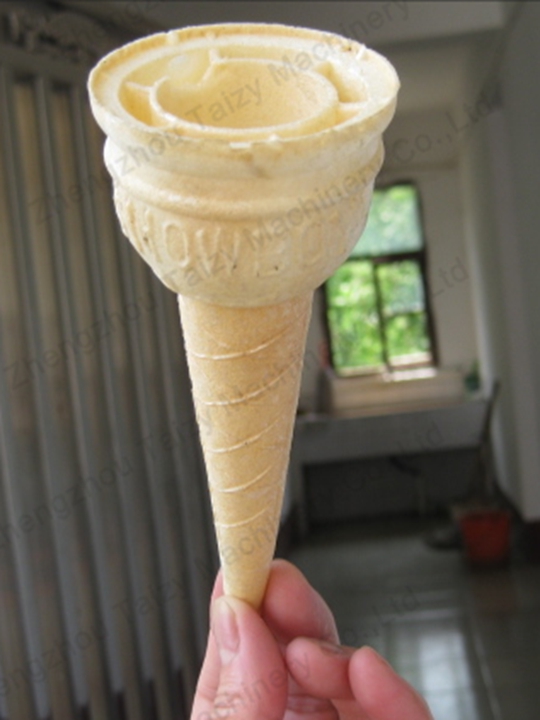

- Horn shape

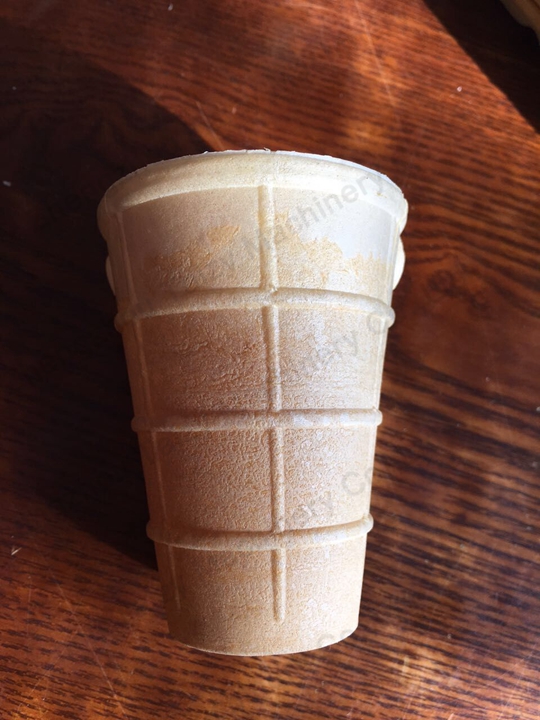

- Cup shape
- Torch shape
- Trumpet shape (McDonald’s style)
- Corn shape
- Basin shape
- Custom shapes available with custom molds
Standard Size: 150mm and below (custom sizes available)
Ice Cream Cone Forming Machine Features
The DST series ice cream cone machines feature electric heating, manual operation, and extremely stable performance. All cones are formed in one shot for consistent quality. Our machines can produce various cone shapes, including horn, cup, torch, trumpet (McDonald’s style), corn, and basin. Custom molds are available for special requirements.
- Capacity Range: 50-3000 pieces per hour
- Mold Options: 2, 4, 10, 12, 24, 32, 40, 60 molds
- Baking Time: 1-2 minutes per batch
- Heating: Electric heating with stable heat pipes
- Delivery Time: 10 days for standard models
Ice Cream Cone Machine Technical Specifications
| Модель | Molds | Capacity (pcs/h) | Power (kW) | Voltage (V) | Machine Size (mm) | Net Weight (kg) | Price (CNY) |
|---|---|---|---|---|---|---|---|
| ТЗ-2 | 2 | 50–60 | 1.5 | 220 | 450 × 350 × 700 | 45 | 3,380 |
| ТЗ-4 | 4 | 100–120 | 2.4 | 220 | 530 × 430 × 650 | 80 | 4,380 |
| TZ-10 | 10 | 250–300 | 4.5 | 220 | 660 × 600 × 1050 | 200 | 9,900 |

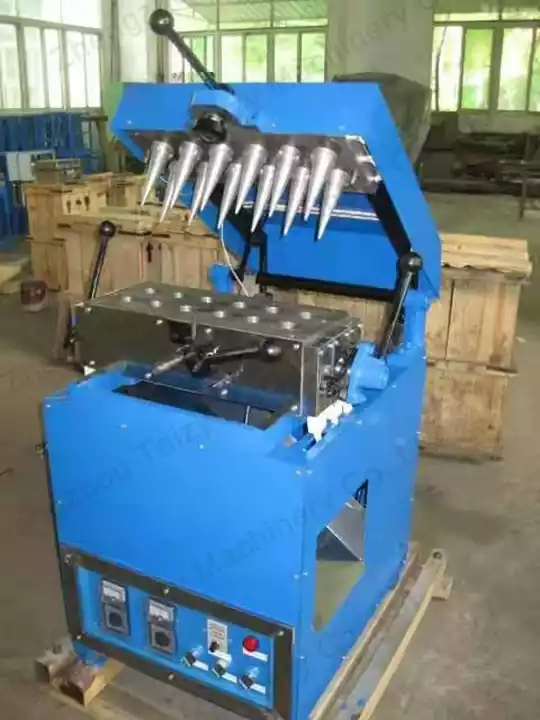

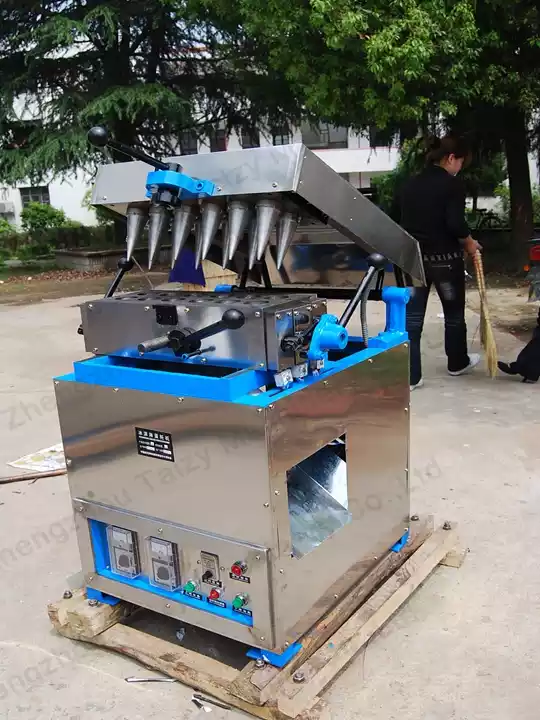

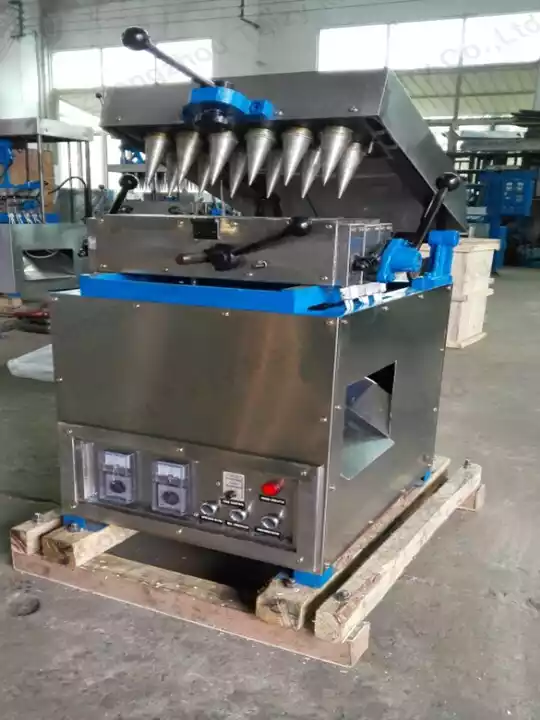

| TZ-12 | 12 | 300–350 | 6.5 | 220 | 800 × 700 × 880 | 180 | 10,500 |

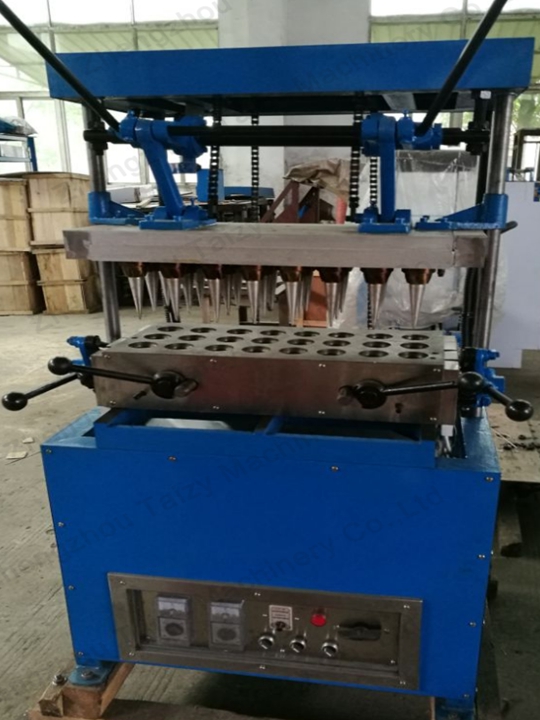

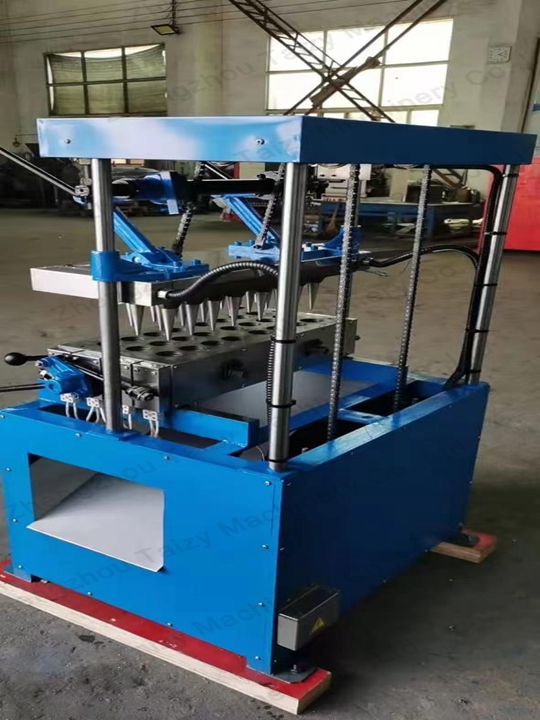

| ТЗ-24 | 24 | 600–800 | 17 | 220 / 380 | 1050 × 800 × 900 | 280 | 15,700 |
| TZ-24C | 24 | 600–800 | 12 | 220 / 380 | 730 × 800 × 1370 | 350 | 16,200 |

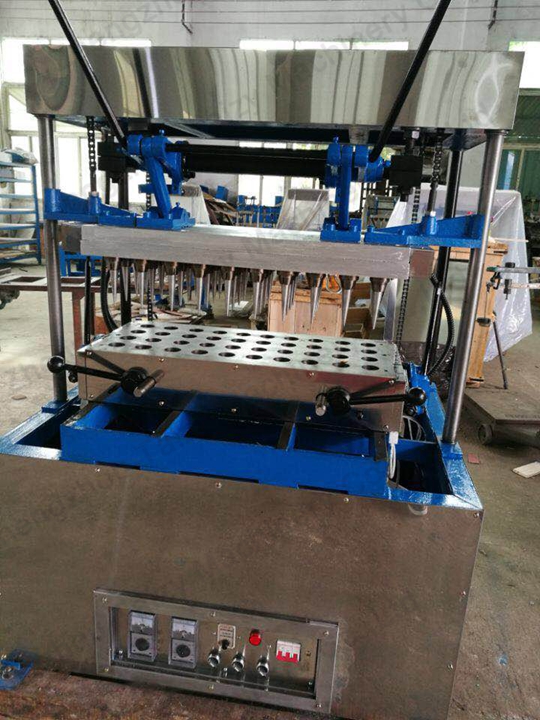

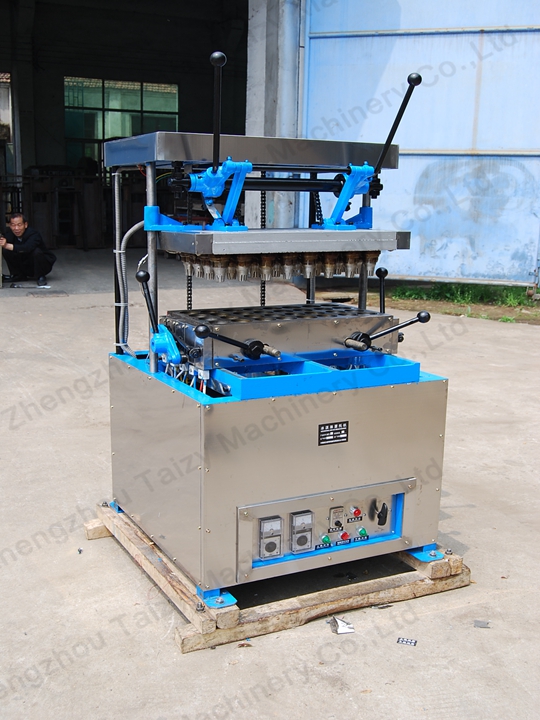

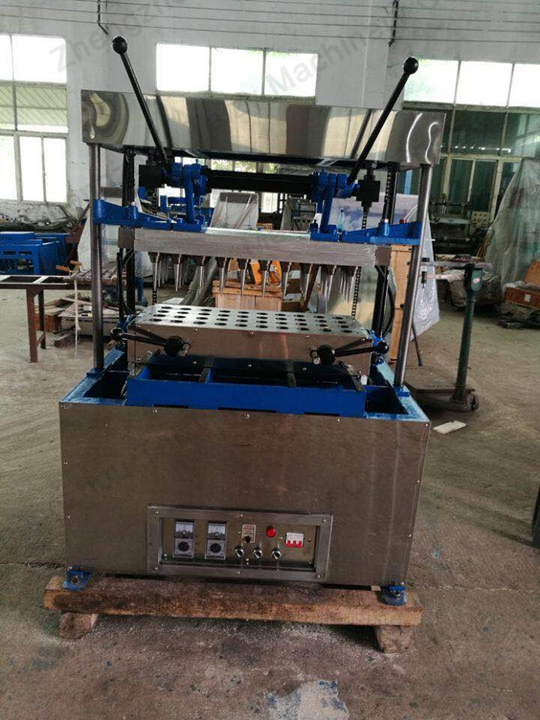

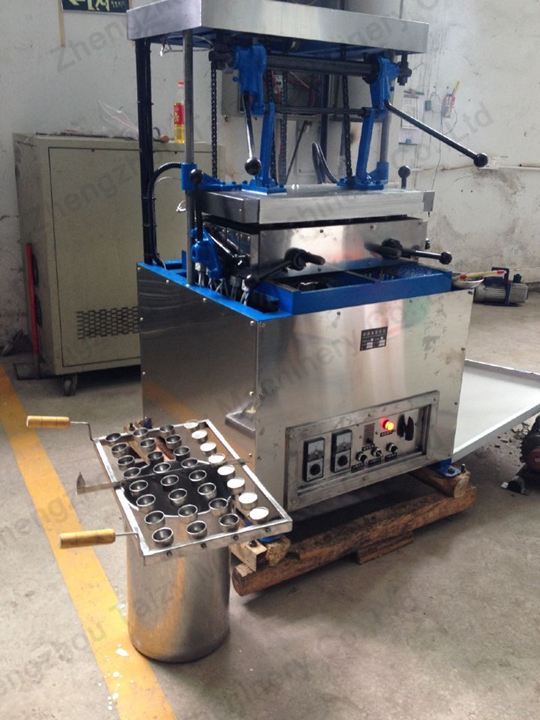

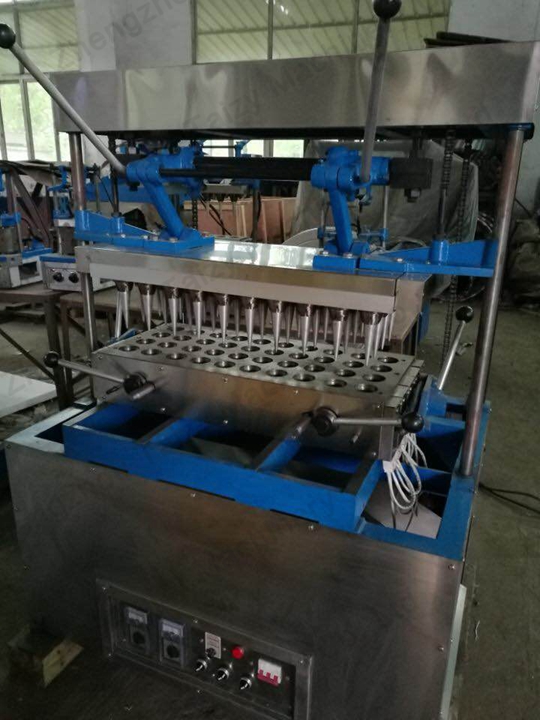

| TZ-32C | 32 | 800–1000 | 15 | 220 / 380 | 880 × 880 × 1380 | 320 | 18,500 |

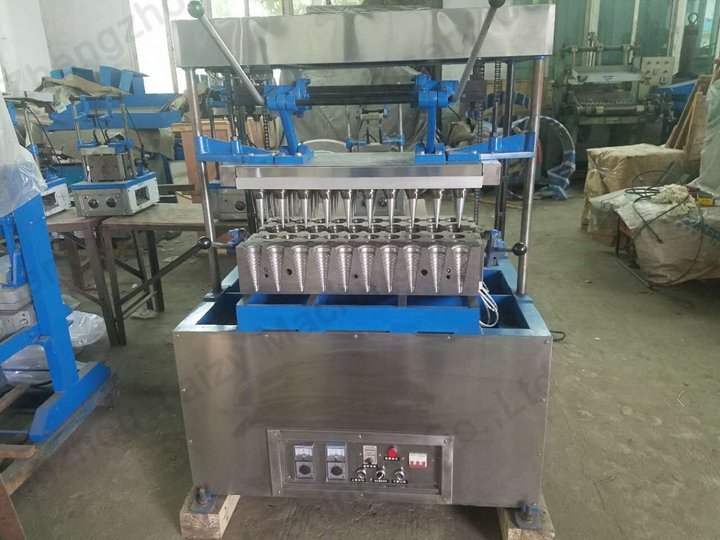

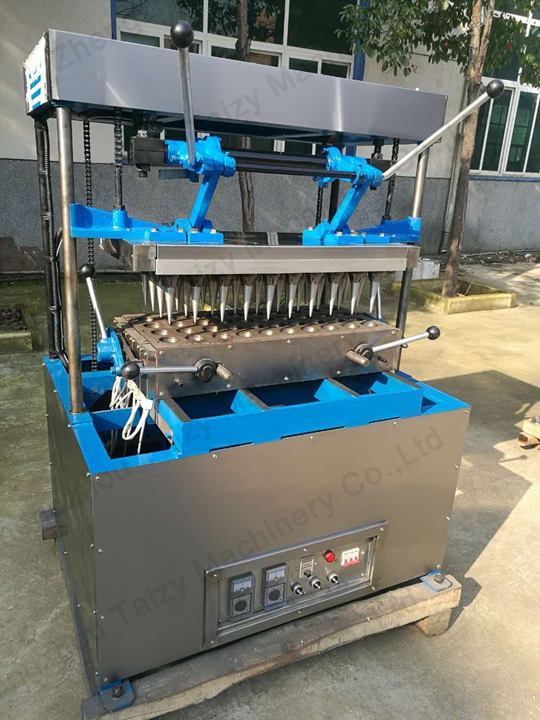

| TZ-40C | 40 | 1200–1400 | 18 | 220 / 380 | 1080 × 800 × 1440 | 600 | 25,000 |

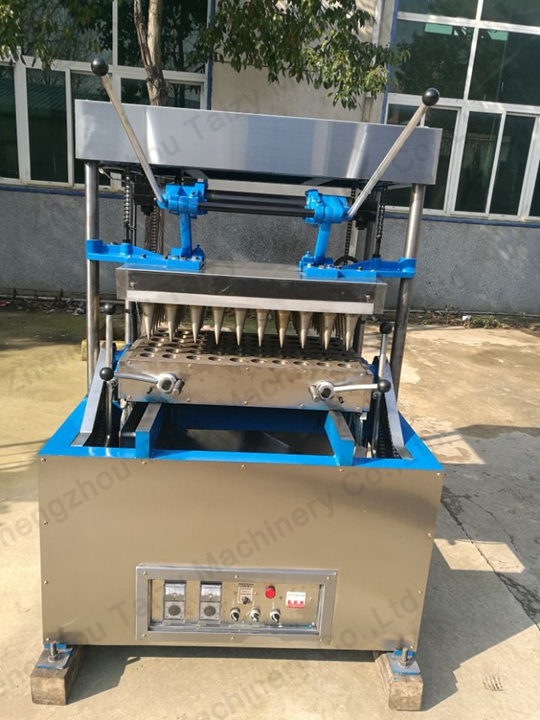

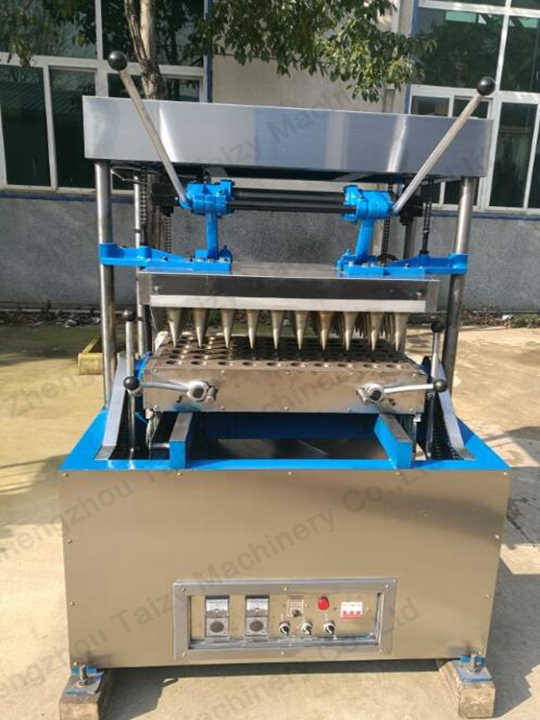

| TZ-60C | 60 | 2400–3000 | 21 | 220 / 380 | 1260 × 1140 × 1640 | 850 | 36,800 |
Application Steps
Step 1: Prepare the Batter
Follow our recommended batter formula for perfect cones:
- Flour: Main ingredient, quality directly affects cone quality. Use high-quality flour.
- Starch: Improves cone texture and crispness.
- Vegetable oil: Makes cones fragrant and crispy.
- Leavening agent: Creates micro-pores for crisp texture when eaten.
Optional additions: Seasonings, sugar, milk, edible pigments, etc., can be added according to local taste requirements to meet different consumer preferences.
Step 2: Machine Setup
- Ensure proper voltage (220v or 220v/380v depending on model)
- Place the machine on a level, stable surface
- Set the desired temperature on the thermostat
- Allow 30-40 minutes for preheating
No air compressor required!
Step 3: Production Process
- Pour a fixed quantity of batter into each mold cavity
- Close the machine
- Bake for 1-2 minutes
- Open and remove perfectly formed cones
- Allow to cool briefly before serving or packaging
Note: All cones are formed in one shot for consistent quality and shape.
Key Automatic Cone Baking Machine Types and Advantages
Machine Construction and Materials
Our ice cream cone machines are built with durability and food safety in mind:
- Frame: Welded profile steel construction for excellent stability
- Surrounding Panels: Steel plate construction
- Molds: Cast iron for even heat distribution and long life
- Components & Shell: Stainless steel for food safety (some models)
- Frame Options: Both stainless steel and common steel plate frames are available
Heating System
All our machines use electric heating with stable heat pipe technology. The heating system is designed for reliability and consistent performance.
- Multiple heat pipes arranged in heating tubes
- Different heat pipe configurations based on the machine model
- Proven stable technology with years of reliable performance
- Temperature adjustable via thermostat (default 220°C, can be set lower)
Note: We don’t currently make resistance wire heating, as our heat pipe technology is more stable and has been proven reliable for years with minimal issues.
Контроль температуры
The machine features adjustable temperature control:
- Default upper mold temperature: 220°C
- Lower mold temperature: 200°C
- The temperature can be adjusted on the thermostat
- Warm-up time: approximately 30-40 minutes to reach the set temperature
Why Choose Our Waffle Cone Maker Machine?
- Extremely stable performance – Proven technology with years of reliable operation
- One-shot forming – Perfect cone shape every time
- Multiple models – From 2 to 60 molds to match any production scale
- Customizable – Custom molds, voltages, and materials available
- Food-safe construction – Stainless steel components available
- Easy to operate – Manual operation with simple controls
- Quick delivery – Standard models ship in 10 days
- Spare parts included – Essential wear parts provided
- Video & manual support – Clear operation instructions
Параметры настройки
Custom Molds
We offer custom mold services for special cone shapes and sizes:
- Standard sizes: Priced as listed, based on our standard dimensions
- Custom dimensions: Additional cost required for customer-provided sizes
- Special shapes: Trumpet (McDonald’s style), corn shape, basin shape, etc., require custom pricing
- Custom logo: Additional cost for logo on molds
Mold Pricing: Mold opening fee: 6,800 CNY + Mold cost: 9,800 CNY
Other Customization
- Frame material: Stainless steel or common steel plate options
- Variable frequency drive: Optional add-on (inquire for pricing)
Ice Cream Cone Making Machine Package and Delivery
What’s Included?
Each machine comes complete with:
- Machine main unit
- Molds (quantity based on model)
- Spare parts: 2 scrapers, 1 feeder, 1 long heat pipe, 1 short heat pipe
- Operation manual & video instructions
Delivery Information
- Standard delivery: 15 days
- Custom molds: 8 days (existing molds available)
