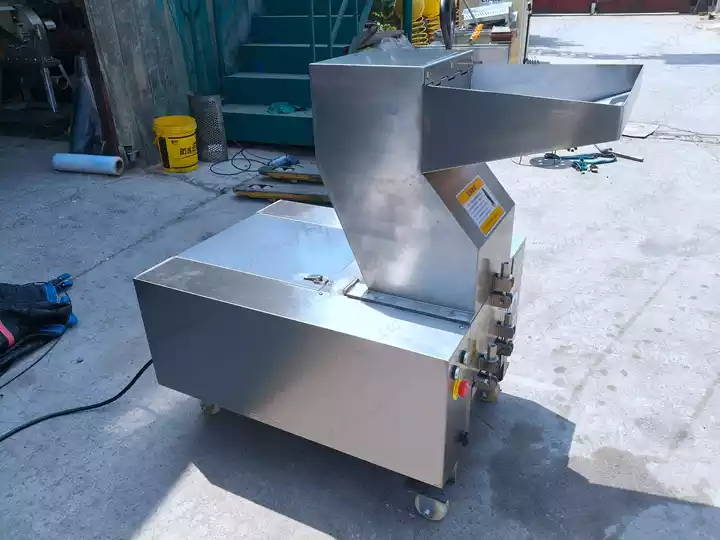

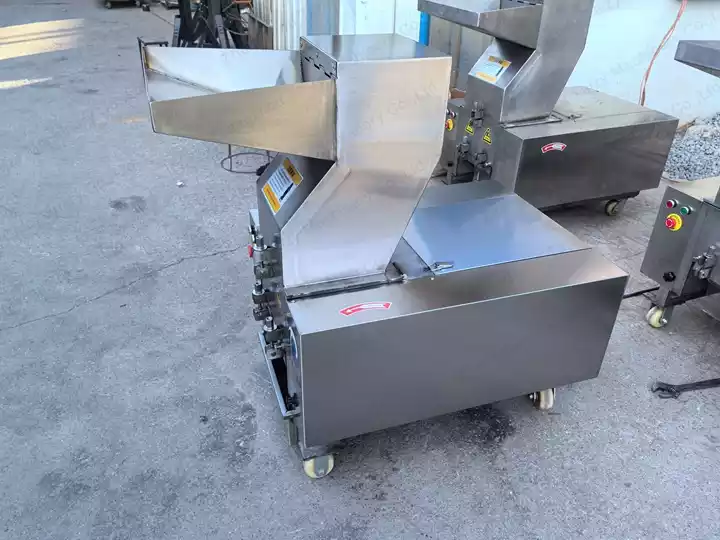

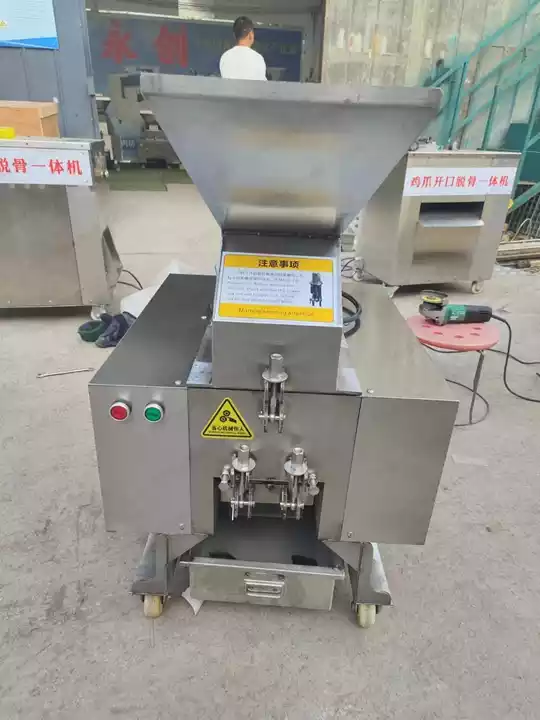

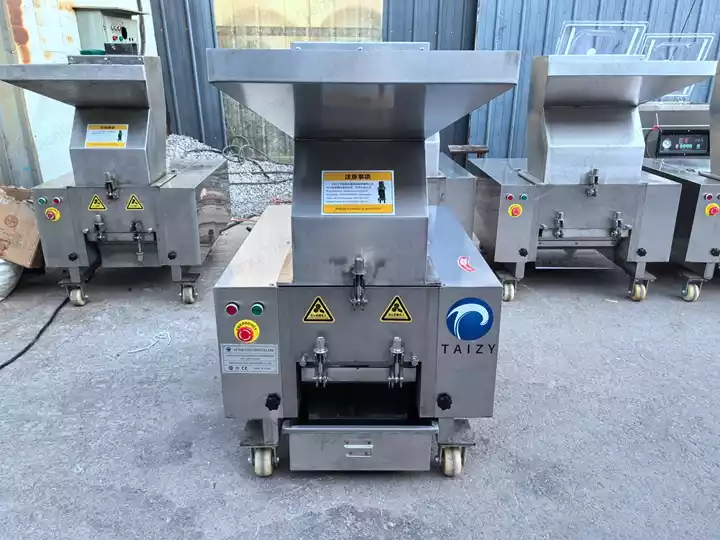

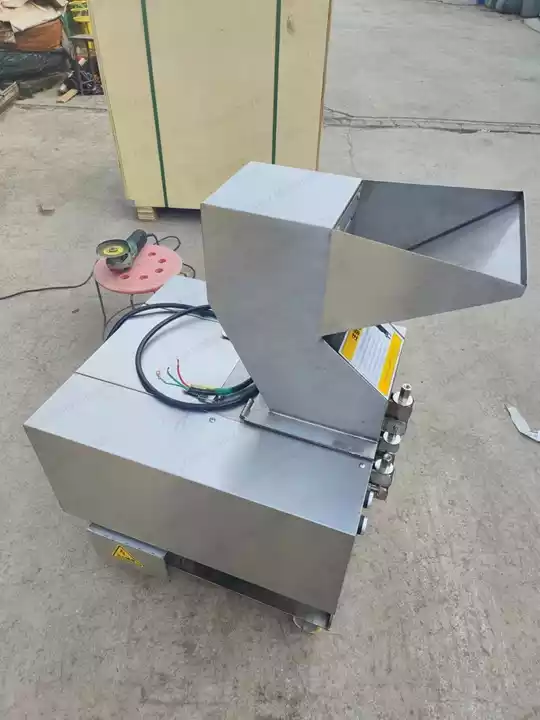

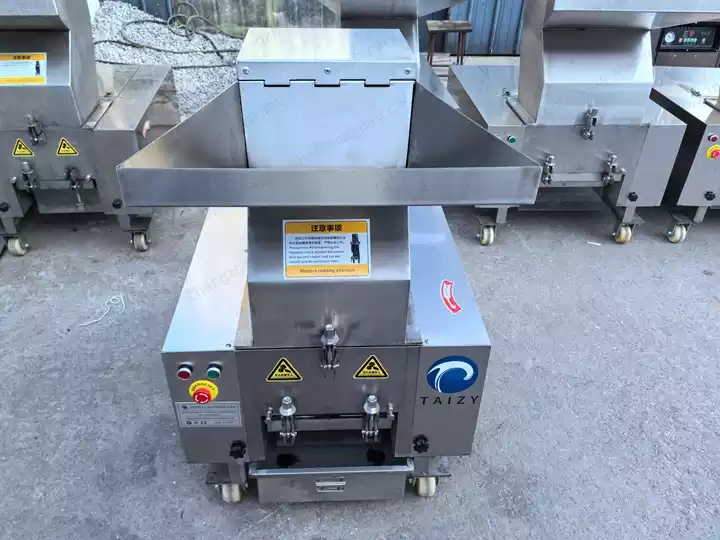

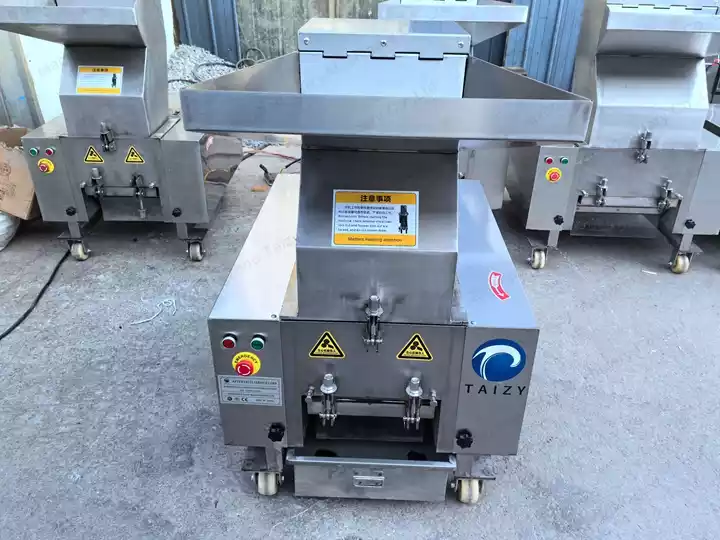

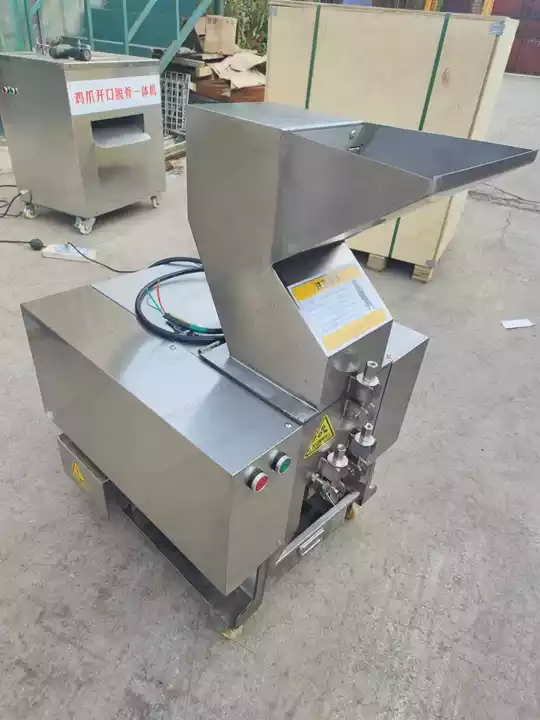

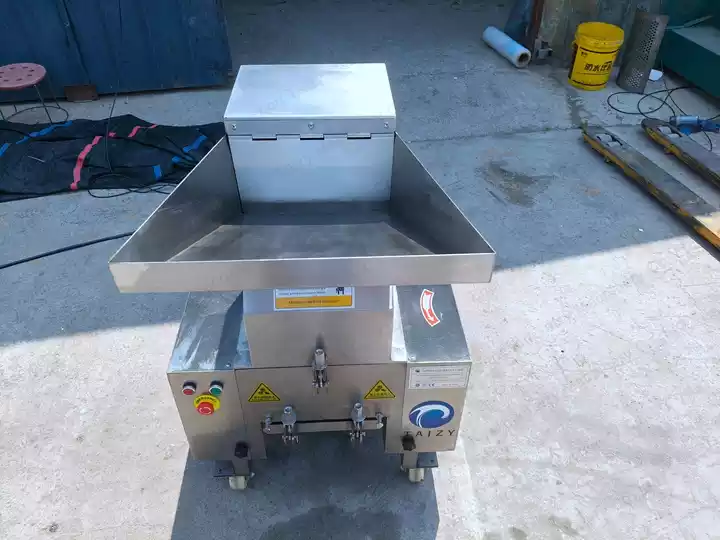

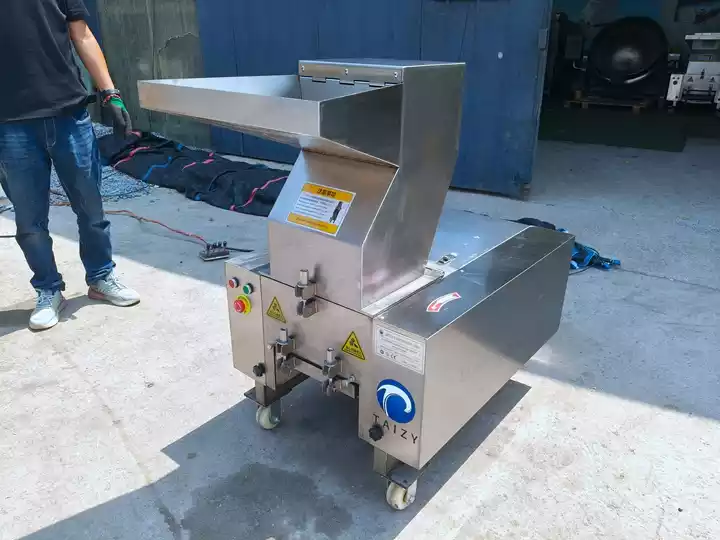

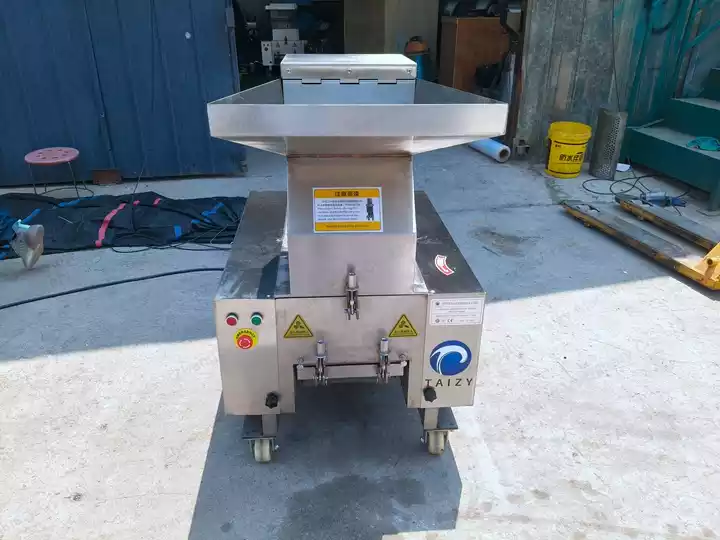

The bone crusher machine is a professional crushing equipment designed for processing various animal bones such as beef bones, pork bones, chicken bones, fish bones, and sheep bones. It is widely used in meat processing plants, pet food factories, bone meal production lines, and food ingredient industries.
This machine can crush fresh bones, frozen bones, and dry bones into granules of different sizes (typically 3–50 mm), making it an ideal pre-processing equipment before fine grinding or colloid milling.
With a capacity range from 20 kg/h to 4000 kg/h, the bone crusher can meet both small-scale and industrial production needs.
Applications
The bone crusher machine is widely used in:
Food Industry
- Sausage production
- Meatball processing
- Bone broth and soup base
Pet Food Industry
- Bone paste
- Pet snacks
Feed Industry
- Bone meal production
- Animal nutrition supplements
Further Processing Line
- Combined with colloid mill → bone paste
- Combined with grinder → bone powder
Animal bones contain rich protein, calcium, and minerals, making them highly valuable raw materials in the food and feed industries.
Principe de fonctionnement
The bone crusher machine adopts a high-speed rotating knife system. The motor drives the rotor to rotate rapidly, and the bones entering the crushing chamber are subjected to:
- Shearing force
- Impact force
- Cutting force
- Grinding force
Through continuous crushing by multiple blades, the bones are broken into uniform particles.
The particle size can be adjusted by changing the screen mesh, ensuring flexibility for different downstream processes.
Machine Structure
The industrial bone crusher mainly consists of:

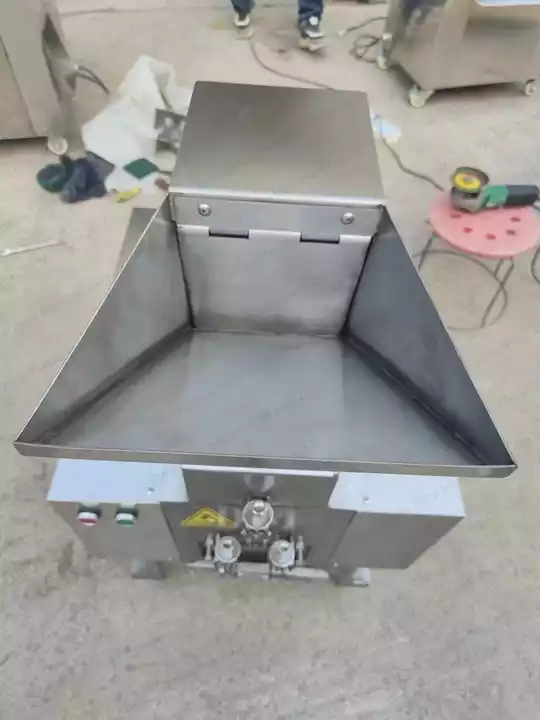

- Feeding hopper (large inlet design for easy feeding)
- Crushing chamber (equipped with rotating blades)
- Knife system (fixed + movable knives)
- Motor & transmission system
- Discharge outlet with screen
High-quality alloy steel blades ensure strong impact resistance and long service life.
Frozen Bone Crushing Machine Specification
| Modèle | Capacity (kg/h) | Fineness | Feed Size (mm) | Power (kW) | Weight (kg) | Dimension (mm) |
|---|---|---|---|---|---|---|
| SL-180 | 20–60 | 4–30 mm | 180×190 | 3–4.5 | 160 | 720×450×950 |
| SL-300 | 80–200 | 4–50 mm | 310×210 | 5.5 | 340 | 1250×730×1150 |
| SL-400 | 150–400 | 4–50 mm | 420×230 | 7.5 | 420 | 1350×860×1200 |
| SL-500 | 200–600 | 4–50 mm | 520×250 | 11 | 600 | 1500×980×1450 |
| SL-600 | 300–900 | 4–50 mm | 620×320 | 15 | 800 | 1600×1100×1550 |
| SL-800 | 800–2500 | 4–50 mm | 820×650 | 30 | 2000 | 2400×1600×2010 |
| SL-1000 | 1000–4000 | 4–50 mm | 1100×800 | 45 | 3800 | 2400×1700×2300 |
Additional Technical Notes
- Blade material: SKD-11 high-speed steel (nickel-coated, rust-resistant)
- Particle size:
- Fresh bones: ≥8 mm
- Meat bones: ~15 mm
- Dry bones: as small as 3 mm
- Screen selection rule:
- Screen size = final particle size + 5–8 mm
- Supports custom voltage (220V / 380V / 3-phase)
Features of the Industrial Bone Crusher Machine
High Crushing Efficiency
Equipped with multiple moving and fixed blades, improving shear force and crushing efficiency.
Wide Application Range
Convient pour :
- Beef bones
- Pork bones
- Chicken bones
- Fish bones
- Frozen or fresh bones
Durable Blade System
Made of alloy steel with heat treatment, ensuring wear resistance and long service life.
Adjustable Output Size
Flexible screen replacement allows different particle sizes for various production needs.
Food-Grade Material
An optional 304 stainless steel structure ensures hygiene and corrosion resistance.
Safe and Stable Operation: overload protection system
Stable motor performance: low vibration and noise
FAQs
What types of bones can this machine process?
It can process beef bones, pork bones, chicken bones, fish bones, and more.
Can it crush frozen bones?
Yes, both fresh and frozen bones can be processed.
What is the smallest output size?
Dry bones can reach about 3 mm, while fresh bones are usually ≥8 mm.
Can the particle size be adjusted?
Yes, by changing the screen size.
Related Products
As a professional manufacturer of meat processing machinery, we also offer a wide range of meat processing equipment, such as frozen meat cubers and bone-in meat separators. If you are interested, please feel free to contact us for detailed information and a quote.
Contactez-nous !
The bone crusher machine is an essential piece of equipment in modern food and feed processing lines. With strong crushing capacity, flexible output size, and durable construction, it provides an efficient solution for maximizing the value of animal bones.
