The egg cleaning line is a fully automatic solution designed for washing, drying, grading, and printing fresh eggs in one streamlined process. This system is ideal for large poultry farms and egg packaging factories aiming to improve hygiene, product appearance, and efficiency.
With capacities ranging from 5,000 to 20,000 eggs per hour, this modular system can be tailored to your production needs. Whether you process chicken, duck, or quail eggs, our solution ensures clean, sorted, labeled, and safely packed eggs with minimal manual labor.
Composition of the Egg Cleaning Line
The complete egg cleaning line typically includes the following machines:

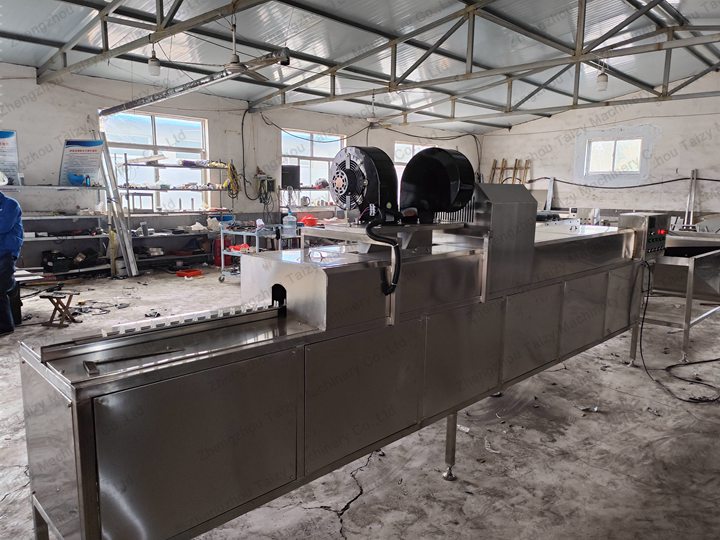

Egg Washing and Drying Machine
The egg cleaning and drying integrated machine is the first essential component of our egg cleaning line, combining washing and air drying functions in one efficient unit.
This machine utilizes advanced brush roller technology to remove dirt, bacteria, and impurities from egg surfaces, followed by an integrated air drying system to ensure eggs are completely dry before further processing.
Key features:
- High-capacity processing: single-row: 5,000 pcs/h, Double-row: 10,000-14,000 pcs/h, Triple-row: 15,000-20,000 pcs/h
- 304 stainless steel construction for food safety compliance
- Inverter speed control for energy efficiency
- Integrated air drying system to remove excess moisture after washing
- Gentle brush roller cleaning to prevent damage while ensuring thorough cleaning
- Water circulation system for resource conservation and environmental protection
- Food-grade PVC conveyor belt for safe egg transportation
Egg Grading Machine
The Egg Grader utilizes precision weighing technology to automatically classify cleaned and dried eggs into different weight categories. This equipment ensures consistent product quality.
Technical specifications:
- Automatic weighing system for precise grading into 5 or 7 different categories
- Optical inspection function for detecting cracked eggs and embryos
- Gentle handling with rubberized rollers to prevent damage during grading
- Vacuum loading device for efficient egg feeding (up to 30 eggs at a time)
- Light inspection area for manual selection of non-conforming eggs
- Multiple exit channels for different grade categories
- Customizable grading parameters based on specific requirements
Automatic Egg Loading Machine
The automatic egg loading machine efficiently arranges and loads graded eggs onto trays in a neat and organized manner. It carefully loads eggs onto trays, reducing labor costs and improving efficiency.
Advanced features:
- Processing capacity: Up to 15,000 eggs per hour
- Tray compatibility: Supports 10, 12, 15, and 30-egg trays (paper or plastic)
- Automatic tray feeder: Can load up to 50 trays at a time
- Food-grade materials: 304 stainless steel structure
- Gentle handling system to minimize egg breakage
- Customizable configurations for different tray sizes and loading speeds
Egg Printing Machine
The egg printing machine provides essential traceability by printing production dates, batch numbers, logos, and other important information directly onto egg surfaces. This equipment ensures compliance with food safety regulations.
Advanced features:
High-speed printing: up to 18,000 eggs per hour processing capacity
Six printheads system for maximum efficiency
High-definition printing with clear, durable marks that won’t smudge or fade
Multiple font options: numbers, Chinese or English letters, symbols, logos, barcodes, QR codes
Easy cartridge replacement with laser-aligned photoelectric system
Automatic cleaning function to prevent printhead clogging
Compact design for easy integration into production lines
Technical Parameters (customizable)
| Section | Function | Capacity |
|---|---|---|
| Washer | Cleaning and drying | 5,000–20,000 eggs/h |
| Grader | Weight sorting | into 5 or 7 grades |
| Tray Loader | Auto tray packing | up to 15,000 eggs/h |
| Printer | Shell printing | 18,000 eggs/h |
Features of the Egg Washing Line
- Fully automatic flow: from washing to packing, labor cost is reduced by 70%
- Food-grade construction: all contact parts made of 304 stainless steel
- Accurate grading: high precision weight sensors ensure consistent results
- Flexible configuration: components can be added or removed as needed
- Hygienic operation: easy-to-clean design meets food safety standards
- Low damage rate: smooth handling reduces breakage and microcracks
Applications of Egg Cleaning Line
- Poultry farms: large-scale egg production facilities.
- Egg processing plants: businesses focusing on egg packaging and distribution.
- Food industry: companies requiring branded eggs for retail or wholesale.
FAQs about Egg Washer Line
Can I use only the washer or grader separately?
Yes, all modules can work independently or be integrated into a full line.
Is the egg printing machine safe for food use?
Yes, it uses non-toxic, food-grade ink and non-contact inkjet printing.
What is the breakage rate of the machine?
Less than 1% with proper operation and maintenance.
Taizy Egg Cleaning Line for Sale
Looking to upgrade your egg processing facility? Contact us today for a customized egg cleaning line solution that meets your specific capacity and quality requirements. Our experienced team will help you design the optimal system.
